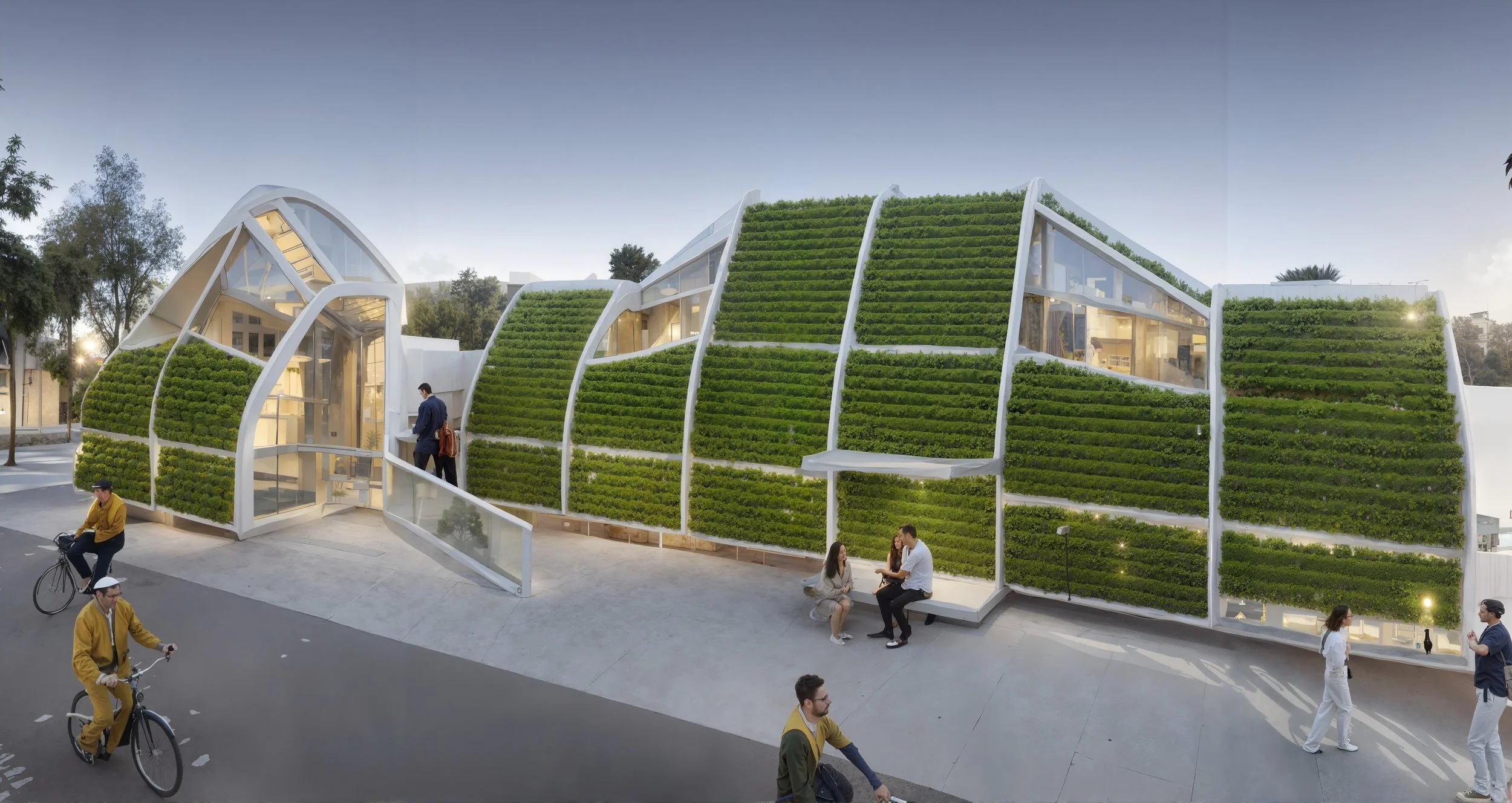

The New Oasis rises, a green-walled haven, where recycled waters dance and breezes gently dry.
The New Oasis

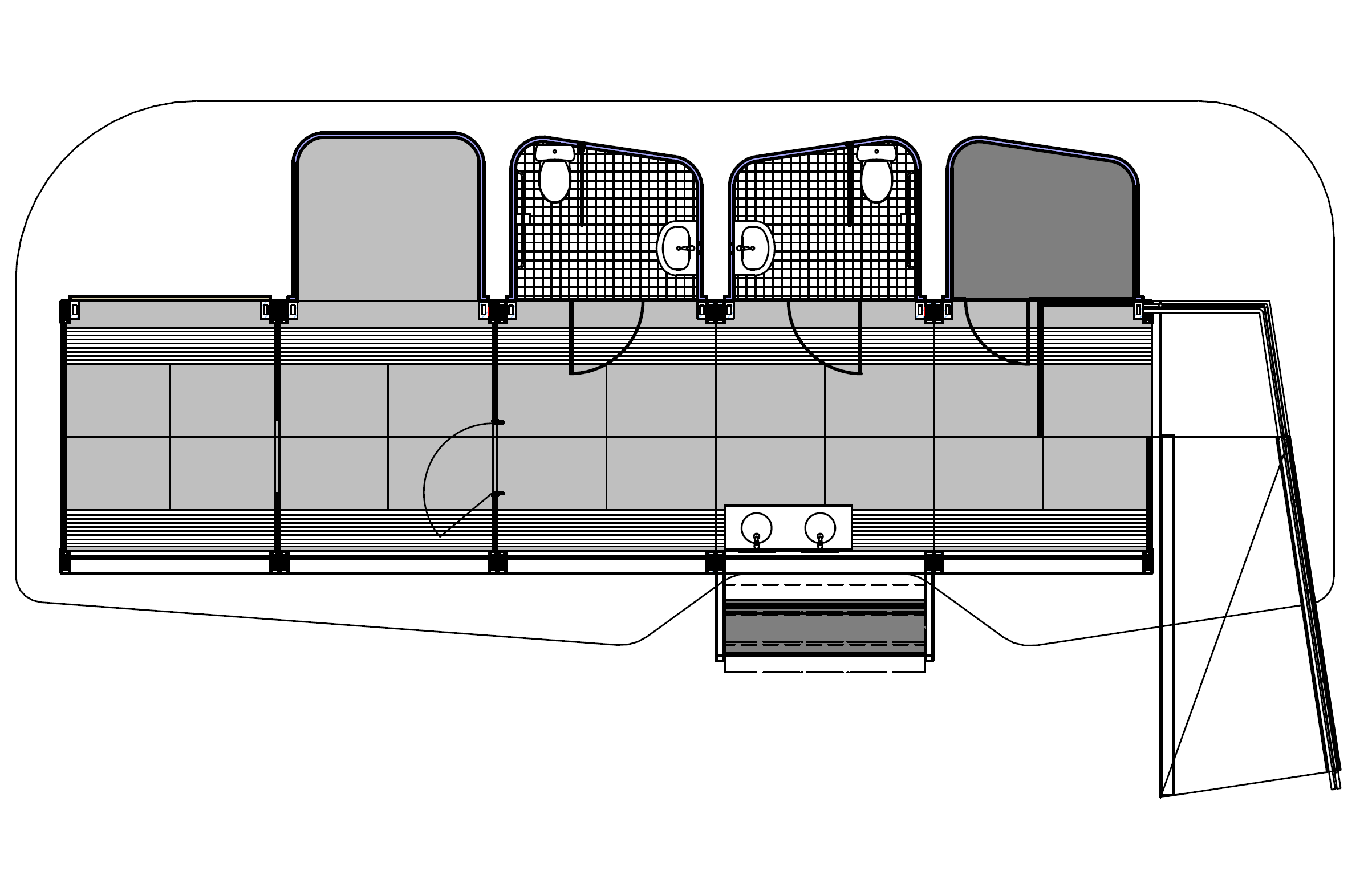

The New Oasis Public Toilet Design reimagines public toilets as pleasant, iconic landmarks with a sustainable design. Key features include a tilted ecological green wall irrigated by recycled gray water collected from floor troughs and wash basins, reducing heat gain and maintaining a self-sustainable system. The modular structure, built around a 2.4M-wide main frame with 3.5M and 5.0M height options, offers flexible combinations of urinals, water closets, and extension rooms, adaptable to various contexts. Raised 580mm above ground with a gravel bed for drainage, the design incorporates a natural ventilation system using breezes to ensure a dry, fresh interior.
